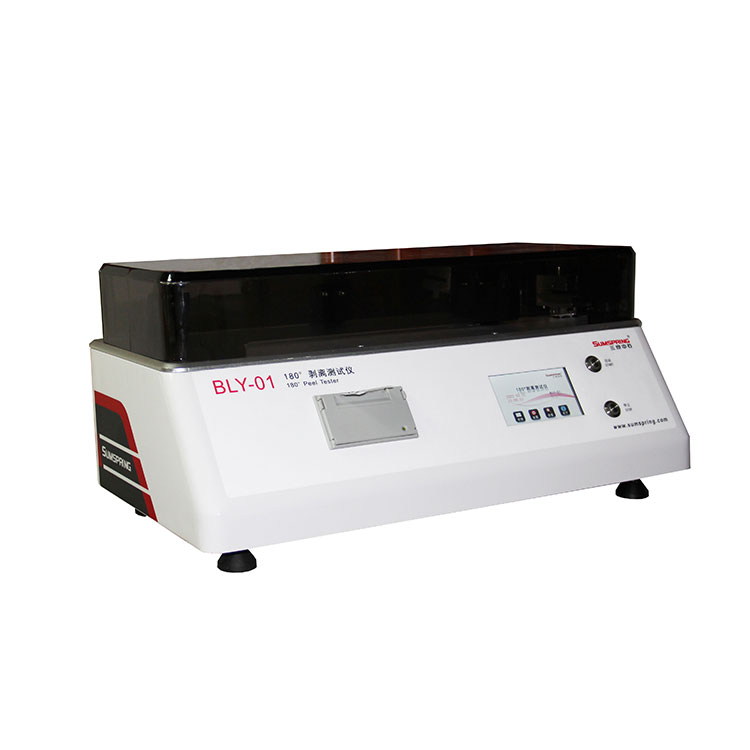

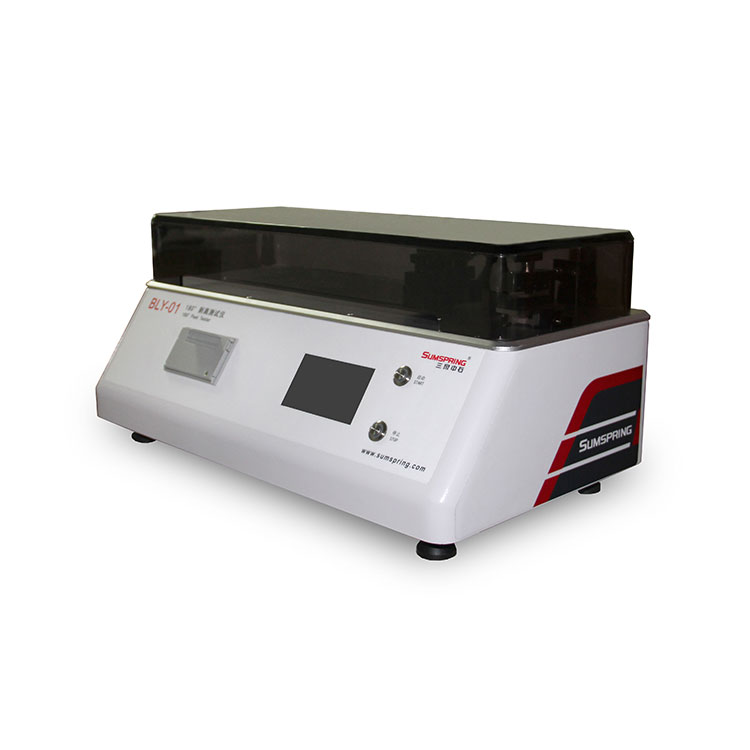

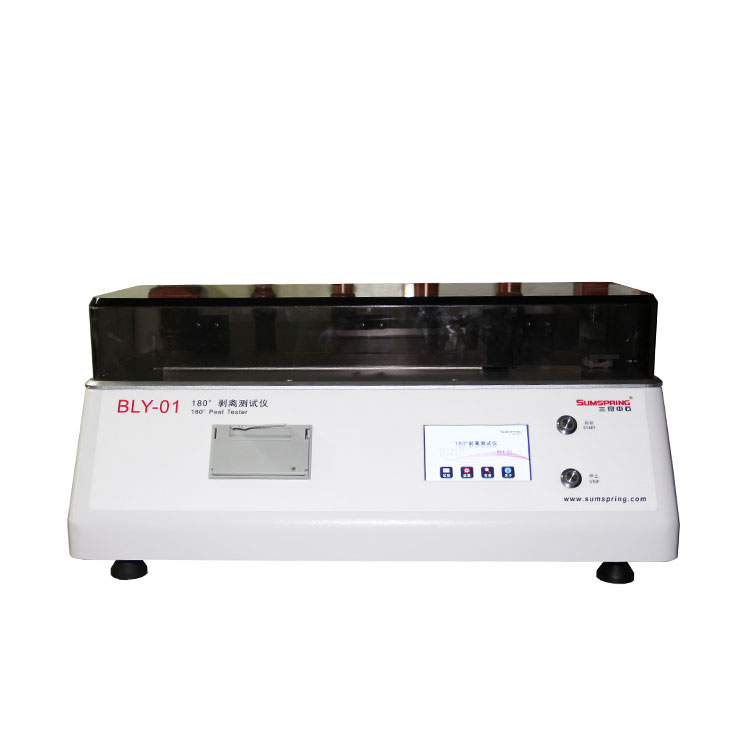

180°Tape Peel Tester
Brand:Sumspring
BLY-01 180° Tape Peel Tester can be used for test peeling, stripping and other performance of adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandage, protection films, release paper, laminated films, films and paper.
Standards:JISZ 0237,QB/T 2358GB 4850,GB 7754,GB 8808,GB 13022,GB 7753,GB/T 17200,GB/T 2790,GB/T 2791,GB/T 2792
PRODUCT APPLICATION
Pressure-Sensitive Tapes, Adhesive Labels, Medical Adhesive Tapes, Rubber, Waterproofing Roll-roofing, Protection Films
TECHNICAL FEATURE
★Microcomputer control, large LCD, PVC operation panel
★Horizontal structure, sensor values without affecting the weight of the fixture
★Micro-printer output data fast, user-friendly storage
★Infinitely variable, tape peel tester meet a variety of test standards
★With a test force value hold function, see the results more convenient
★Metal buttons, durable
TEST PRINCIPLE
Place test sample face to the standard test plate, rolling three times with a standard pressure roller , place a while, then clamping on the tape peel tester, peel test specimens from plates in the form of 180 °, the force sensor records valuer during the peeling progress.
TECHNICAL SPECIFICATIONS |
|
Standard Roller |
2000g±50g |
Top Test Load |
30N(Range can be customized) |
Valid Range |
2%-100%FS |
Resolution |
0.1N |
Accuracy |
1 FS |
Test Speed |
1-500 mm/min (Step Less) |
Displacement Resolution |
0.01mm |
Speed Accuracy |
≤±2% |
Sample Width |
0<L≤30mm |
Dimension |
550mm×370mm×240mm |
N.W. |
28 kg |
ENVIRONMENT REQUIREMENT |
|
Temperature |
15℃-30℃ |
Relative Humidity |
No more than 80%,no dewdrop |
Power Supply |
220V 50Hz |
CONFIGURATIONS |
|
Standard Configurations: Mainframe, Sample Grips, Micro Printer, Standard Pressure Roller and Test Panel |
