Glass bottle impact resistance tester

Model:CJY-03
Brand:Sumspring



Glass Bottle Impact Resistance Tester is suitable for test impact resistance for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, glass containers and other kinds of glass bottles, is the necessary testing instruments for quality inspection institutions, breweries, glass manufacturing enterprises etc..

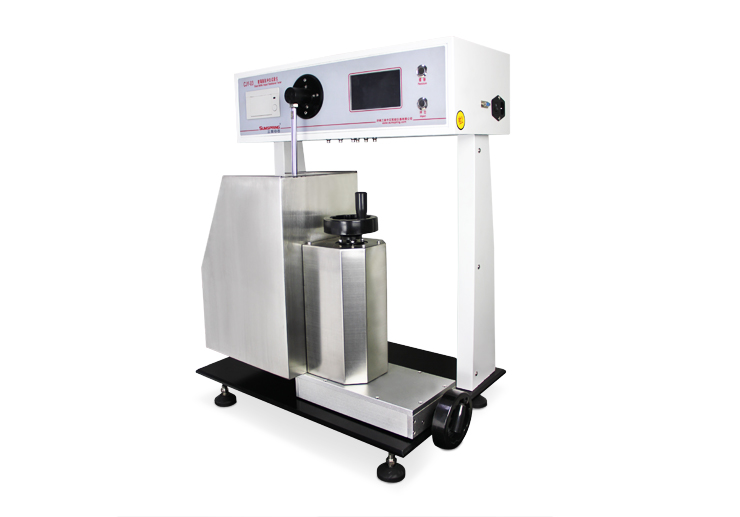

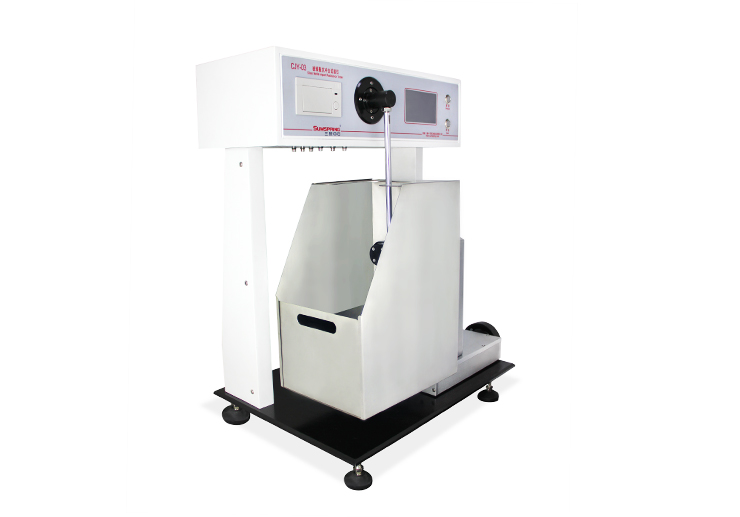

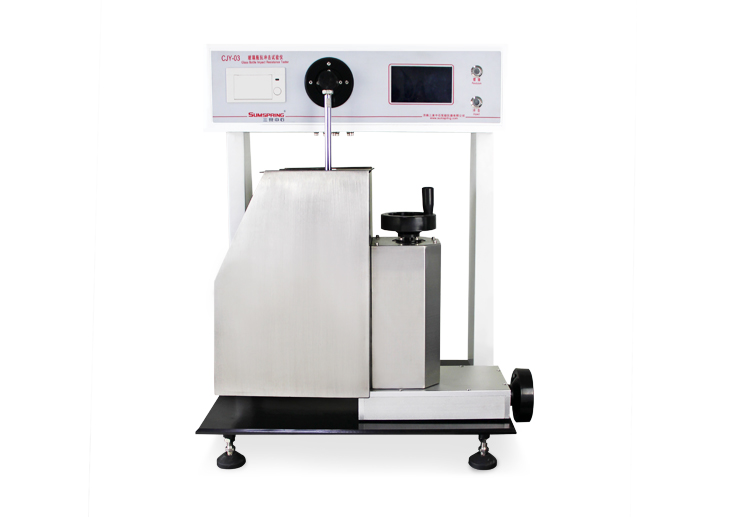

Glass bottle impact resistance tester CJY-03



Test principle

According to the principle of energy conversion, the pendulum impact energy to glass bottle  is determined by the potential energy of the pendulum. When the angle of the pendulum is a certain value,pendulum potential energy is a certain value, the impact of the pendulum on the glass bottle is a certain value.



Application

Product

Name

Application

IMG_257

Glass bottle

For impact resistance test for all kinds of beer bottles, beverage bottles and all kinds of glass bottles.

IMG_259 Infusion bottle

For impact test, the volume of glass bottles, such as infusion bottles, etc..

IMG_260 Vials

Glass bottle impact resistance tester is used for test impact resistance for mold resistant bottle, antibiotic bottle



Technical Feature

★LCD touch screen,can set the impact energy,impact angle and other indicators
★Electronic measurement mode,accuracy is 0.01J
★Pendulum pneumatic clamping and release,avoid human error
★Adjust the impact position according to the sample size
★The system statistical test data automatically
★Fast print ,test results permanent preservation



Main Specifications

TECHNICAL SPECIFICATIONS

Sample diameter range

φ20~165mm

Bottle position height

20~180mm

Impact energy

0~2.9N·m

Pendulum clamping way

Pneumatic

Resolution

0.01N.m

Dimension

420mm×330×500mm

Net weight

28kg

ENVIRONMENT REQUIREMENT

Temperature

15℃-35℃

Relative Humidity

No more than 80%,no dewdrop



Configuration

Glass bottle impact resistance tester host



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
