Peel and tensile strength tester
Brand:Sumspring
Peel and tensile strength tester BZY-30 applies to test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper. It can also applied to test the viscous properties, such as peel strength test for adhesive tapes, adhesive, protection film, type paper, composite membrane, and other related products.
BZY-30 adopts high accuracy lead screw transmission system can realize the test speed CVT. international famous brand force transducer could test tiny force value change.Test data stable, high precision, especially suitable for wet tensile strength and release paper products for tensile peel test. It is widely used in quality inspection institutions, research institutions and companies.

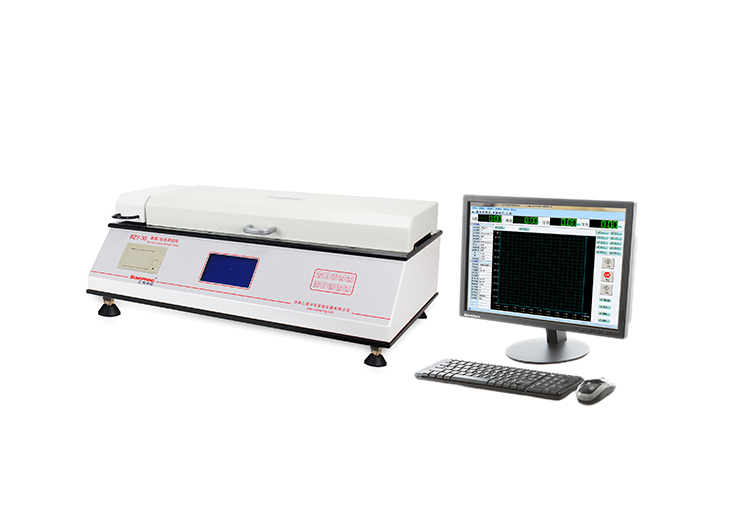

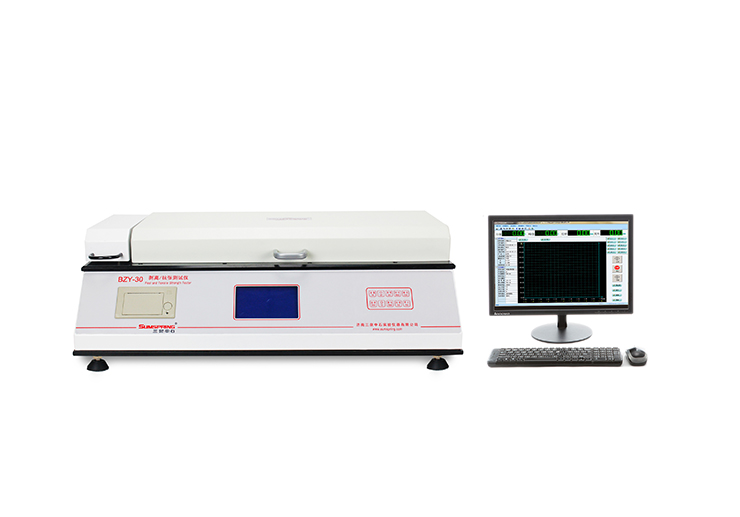

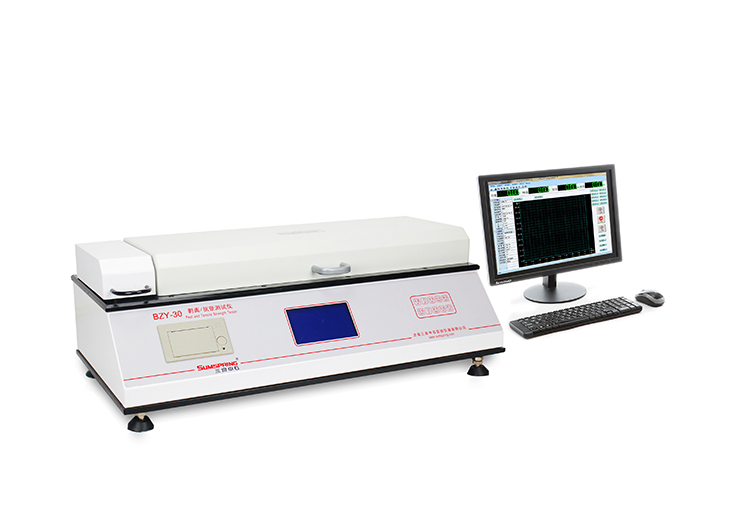

Peel and tensile strength tester BZY-30
Test principle
The specimen clamped between two chuck and do relative motion. Collect the strength and displacement changes in the progress of test by clamp head force value sensor and built-in displacement sensor to calculate tensile and deformation rate.
Application
Product |
Name |
Application |
![]() |
Toilet paper |
Peel and tensile strength tester applies to test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Tissue paper | Applies to test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Paper | Test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Adhesive | It applies to test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Composite film | Test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Protective film | It applies to test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Adhesive tape | Applies to test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
![]() |
Adhesive plaster | It test wet tensile strength, tensile strength, elongation at break, tensile energy absorption for paper, toilet paper and tissue paper |
Technical feature
★Two test mode include paper (wet) tensile strength and 180 ° peel strength test .
★Microcomputer control, large LCD, PVC operation panel
★Horizontal structure of the sensor value is not affected by the fixture weight, small force value more accurate
★Peel and tensile strength tester with micro-printer output data fast, user-friendly storage
★Precision imported ball screw drive, 1-500mm / min CVT meet a variety of test standards
★Test force value hold function make user to see results more convenient
★Sensing system using the world-renowned components, stable and reliable performance
★Professional software provides test results curve statistical analysis, the test results accurately and intuitively presented.
★Equipped with standard RS232 interface, convenient external connection and data transmission system with computer
Main Specification
Technical parameter |
|
Test Load |
30N(Others Customizable) |
Effective range of test load |
2%~100%FS |
Smallest reading value of Test Load |
0.001N |
Smallest reading value of displacement |
0.01mm |
Test Accuracy |
0.5FS |
Rate Range | 1~500mm/min (Stepless) |
Speed Accuracy | ≤±2% |
Specimen Width | 0<L≤50mm |
Machine size |
550×370×240 mm |
Weight |
28Kg |
Environment requirements |
|
Environment temperature |
15℃-40℃ |
Relative humidity |
No more than 80%,no dewdrop |
Power supply |
220V,50Hz |
Standards
GB/T20808-2011,GB/T12914,GB/T465.2,GB 4850,GB 7754,GB 8808,GB 13022,GB 7753
Configuration
Standard: Peel and tensile strength tester host , tensile standard fixture, mini-printers, standard hand-held roller, standard test panels
Optional: Test software, communication cable
Contact US
Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
