Bending stiffness tester

Model:TD-10A
Brand:Sumspring



Bending stiffness tester TD-10A is designed to test stiffness of all kinds of paper, cardboard stiffness . TD-10A using the latest test structure, convenient specimen clamping, one-button operation during the test, the instrument owned large LCD can visualize the entire testing process curve. It is ideal stiffness detection equipment for paper companies, packaging companies, quality inspection departments.

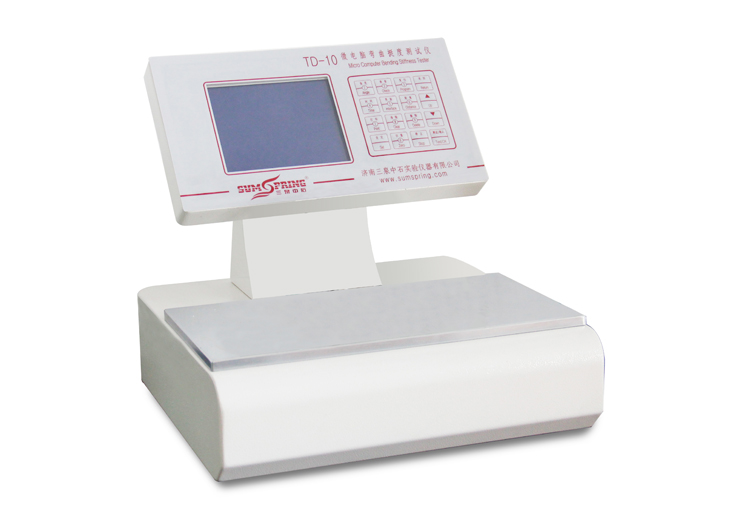

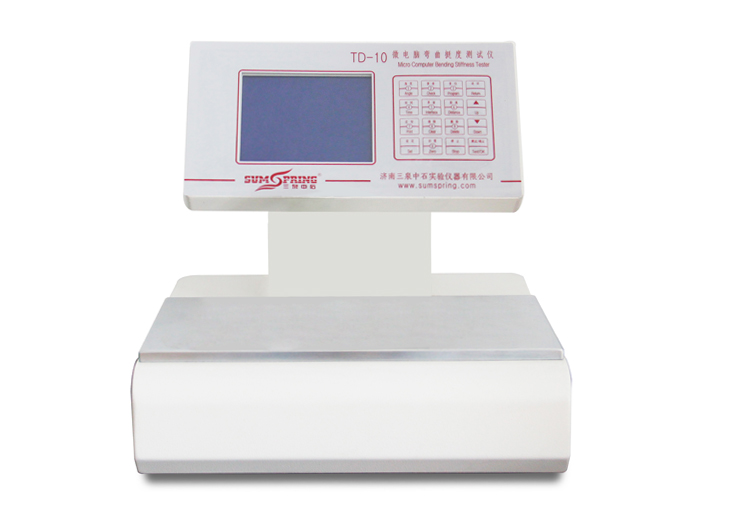

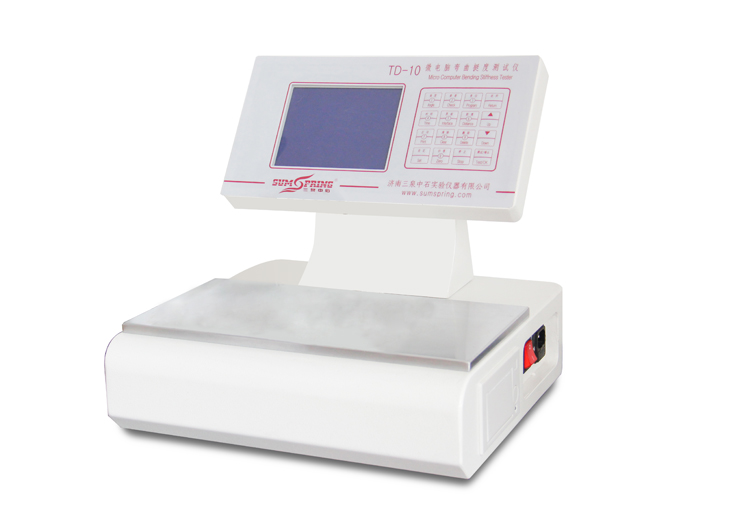

Bending stiffness tester TD-10A



Test principle

Cut some specimen with a certain size and installed on the bending stiffness tester. By measuring the force or moment that one end is clamped to a given angle, the force acting on the constant bending length is measured. Crease stiffness is according to the standard requirements of sample, clamping apparatus quite choice crease stiffness test items to be tested and get stiffness values result.



Application

Product

Name

Application

IMG_257

Paper

For the bending stiffness and crease stiffness measurement of paper, cardboard, cartons and other paper products

IMG_258 Plastic film

Used for testing the appearance bending stiffness of various plastic films or sheets



Technical Feature

★Microcomputer processing system, PVC control panel, large-screen LCD test curve

★7.5 ° and 15 ° stiffness test ,arbitrarily set between (1 to 90)

★Test crease stiffness and paper stiffness

★Test time can be set between (7.5 ~ 35) s

★Test angle change controlled by the motor improve measurement efficiency

★Bending stiffness tester with measurement statistics, printing functions

★Return to the starting position after the test is complete



Main Specifications

TECHNICAL SPECIFICATIONS

Test Range

15-10000mN.m

Accuracy

Under 50mN:±0.6mN,Others:±1%

Resolution

0.1mN

Indication Variability

≤1%

Bending Length

Six-speed Adjustable:(50/25/20/15/10/5 ±0.1)mm

Bending Angle

(±7.5oor ±15o)(1-90°Adjustable)
Load arm length 200°±20°/min
Bending Speed 3s~35s Adjustable
Data Display 5.7in LCD,With graph shows

Dimension

340mm(L)X330mm(W)X340mm(H)

Net weight

15kg

ENVIRONMENT REQUIREMENT

Temperature

15℃-50℃

Relative Humidity

No more than 80%,no dewdrop

Power Supply

220V,50Hz



Standard
GB/TT22364-2008,GB/T 23144,GB/T 2679.3



Configuration

Bending stiffness tester  host, micro-printer





Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
