Home    Paper package tester    Paper bibulous rate tester

Paper bibulous rate tester

Model:XSL-200A
Brand:Sumspring



Paper bibulous rate tester XSL-200  (Klemm abosrption tester) is designed for determine unsized paper and paperboard of capillary height.  (Not available for 10min in the capillary suction height of less than 5mm in paper and paperboard). It adopts five station design, high test efficiency. Bibulous rate tester is widely used in the papermaking enterprises, general administration of quality supervision, inspection agencies and other units.

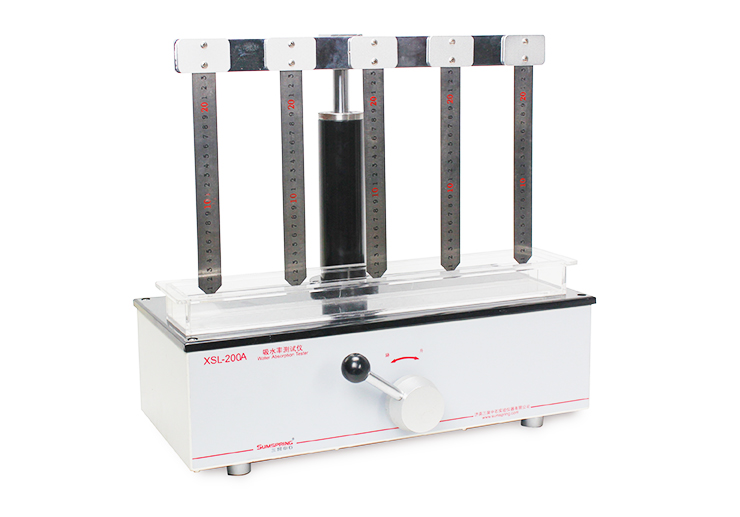

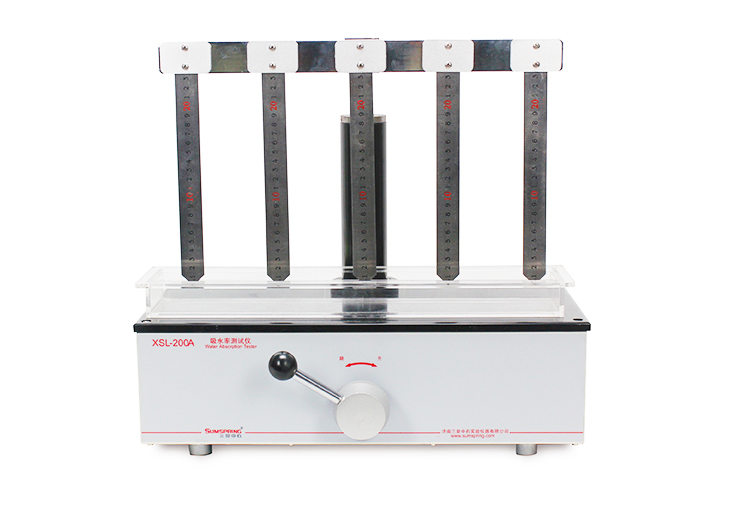

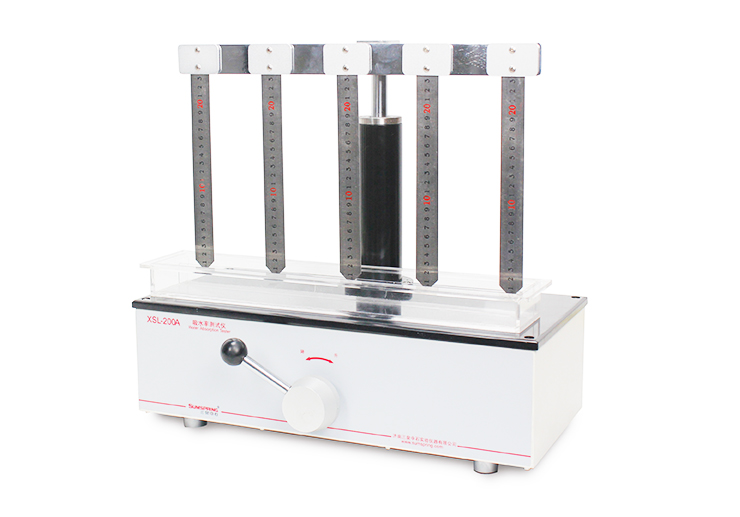

Paper bibulous rate tester XSL-200A



Test principle

Take a vertical suspension sample, its bottom end immerse into paper bibulous rate tester sink, measured after a certain time of capillary suction liquid height, judged whether paper or cardboard water absorption property. Select absorbing time according to the product characteristics.



Application

Product

Name

Application

IMG_257

Paper

Paper absorption detector used for the determination of the height of unsized paper and paperboard capillary imbibition.



Technical Feature

★Five station structure, high efficiency test

★Humanized structure, easy to operate



Main Specifications

TECHNICAL SPECIFICATIONS

Test Range

5-200mm

Specimen Size

250×15mm

Engraved scale division value

1mm

Simultaneous specimen numbers

10 Articles

Numbers of engraved ruler

5

Dimension

430mmX240mmX370mm

Net weight

12kg

ENVIRONMENT REQUIREMENT

Temperature

23±2℃

Relative Humidity

50±5%RH



Standard
QB / T1662 (Klemm absorbency tester), GB / T 461 [1] .1-2002



Configuration

Paper bibulous rate tester host, scale



Contact US

Note: Sumspring is committed to providing high-quality packaging testing instruments for you, some products in the process of upgrading, product parameters and appearance will change accordingly, please call the Jinan Sumspring Experiment Instrument Co. Ltd. to inquiry.
