Paper Tearing Tester



Paper Tearing  Tester SLD-1000Z  is designed for the tearing test of paper, films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.

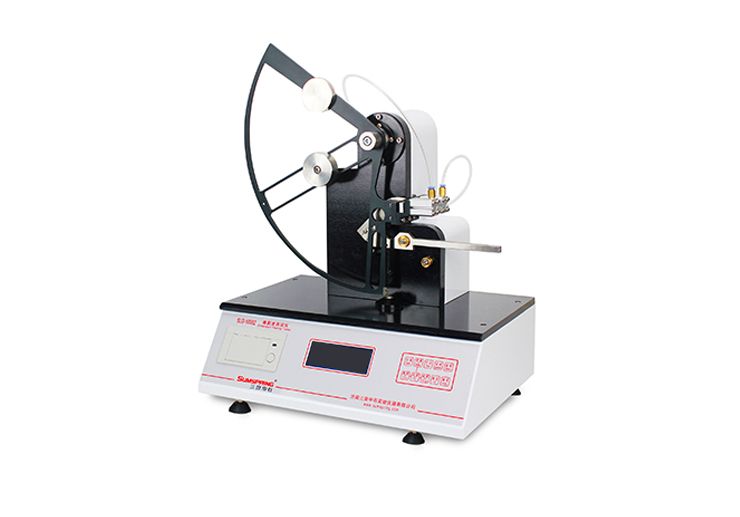

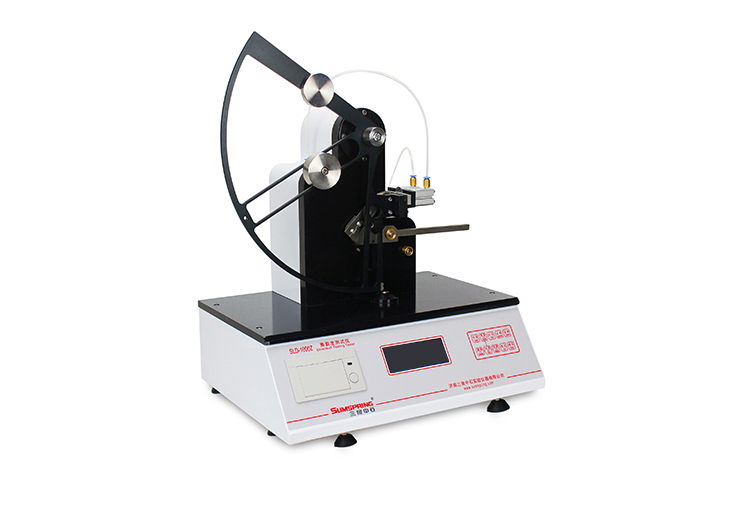

Paper Tearing  Tester SLD-1000Z



Test principle

Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreased energy caused by tearing to obtain the required force for tearing.



Application

Product	Name	Application
	Plastic film	Elmendorf tearing tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens
	Sheet	It is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens
	Paper	Tear tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens
	Non-woven fabric	It is used for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens



Technical feature

★The instrument is controlled by micro-computer, large LCD display

★The instrument is designed by automatic and electronic measurement which improves the testing accuracy

★Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively

★Computer assisted horizontal adjustment system could maintain the instrument optimum status

★Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control

★Professional software supports multi-unit data output

★Equipped with pendulums of multiple capacities



Main Specification

Technical parameter
Pendulum Capacity	200 gf, 400gf, 800gf, 1600 gf, 3200gf, 6400gf,
Resolution	1mN
Sample Holder	Pneumatic
Pendulum Release	Pneumatic
Machine size	440mm×340mm×530mm
Weight	30Kg
Environment requirements
Air pressure	0.6 Mpa(User-Supply)
Environment temperature	15℃-35℃
Relative humidity	No more than 70%，no dewdrop
Power supply	220V,50Hz



Standards
ISO 6383-1-1983, ISO 6383-2-1983, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414



Configuration

Standard Configurations: Elmendorf Tearing Tester mainframe, Professional Software, Communication Cable, One Basic Pendulum and One Extra Weight

Optional Configurations: Basic Pendulum: 200 gf, 1600 gf

Extra Weight: 400 gf, 800 gf, 3200 gf, 6400 gf
